Monday, January 7, 2008

How to use the ListSelectionDialogBinder

This tutorial is based on the Simple Sample.

We will add new property "favorite fruit" to the Contact class.

First we create a new Fruit class:
public class Fruit {
private String name;
public Fruit(String name) {
this.name = name;
}

public String getName() {
return name;
}
}

Then we add the favoriteFruit property:
public class Contact {
...
private Fruit favoriteFruit;
...
public Fruit getFavoriteFruit() {
return favoriteFruit;
}
public void setFavoriteFruit(Fruit fruit) {
this.favoriteFruit = fruit;
}
}

In the richclient-application-context.xml we have to define the ListSelectionDialogBinder for properties of the type Fruit:

<bean id="binderSelectionStrategy" class="org.springframework.richclient.form.binding.swing.SwingBinderSelectionStrategy">
<property name="bindersForPropertyTypes">
<map>
<entry>
<key><value type="java.lang.Class">org.springframework.richclient.samples.simple.domain.Fruit</value></key>
<bean class="org.springframework.richclient.selection.binding.ListSelectionDialogBinder"/>
</entry>
</map>
</property>
</bean>

The only thing that's left is the ContactForm.

For the ListSelectionDialogBinder it's necessary to build a context to feed to the binding.

A context is nothing more than a Map.
    Map fruitContext = new HashMap();


Here we build the list of fruits the user can choose from, but in real life this will probably come from the database ...
    List fruits = new ArrayList();
fruits.add(new Fruit("apple"));
fruits.add(new Fruit("banana"));
fruits.add(new Fruit("kiwi"));
fruits.add(new Fruit("orange"));
fruits.add(new Fruit("pear"));


We use the fruit in the selectable items:
    fruitContext.put(ListSelectionDialogBinder.SELECTABLE_ITEMS_KEY, fruits);


The following code will use the name of the fruit as label, and will show "<no>" for null values:
    fruitContext.put(ListSelectionDialogBinder.LABEL_PROVIDER_KEY, new LabelProvider() {
public String getLabel(Object item) {
Fruit bean = (Fruit) item;
return bean == null ? "" : bean.getName();
}
});


If you want filtering, add the following entries. This will allow the user to filter the dialog on the name property of the fruit.
    fruitContext.put(ListSelectionDialogBinder.FILTERED_KEY, Boolean.TRUE);
fruitContext.put(ListSelectionDialogBinder.FILTER_PROPERTIES_KEY,
new String[] { "name" });


And finally we add the binding to the form:
    formBuilder.addSeparator("Fun stuff");
formBuilder.row();
formBuilder.add(getBindingFactory().createBinding("favoriteFruit", fruitContext),
"colSpan=1");


And this is the result:

Nothing selected:

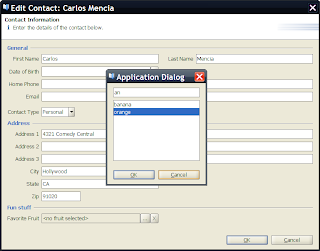

And when we click on the select button:


And select "orange" we get this:
